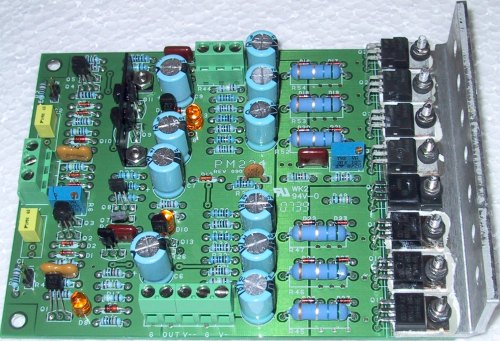

PM224 MOSFET Power Amplifier Module
PM224HV MOSFET High Voltage Power Amplifier Module

PM224: 200 Watt RMS into 8 Ohm or 4 Ohm.
PM224HV: 100 Watt RMS.
All MOSFET design.
Better than 0.01% distortion at 1 KHz.
Differential (Balanced) or Single Ended Inputs.
AC or DC Coupling (jumper selectable)..

Specifications PM224:

This amplifier is suited for high performance audio amplifier applications.

Frequency response:   10Hz - 20KHz +/- 1dB (AC coupled)
                      DC - 20KHz +/- 1dB (DC coupled)
Slew rate:            25V/us
THD at 1KHz:          better than 0.01%;
Voltage gain:         32 dB (40x), non inverting or inverting;
Input impedance:      25 KOhm, AC or DC coupled.
Output load:          4 or 8 Ohm, DC coupled.
Max. output current:  12A
Max power output:     200 Watt RMS , continuous, into 8 Ohm (using +/-65V power supply)
                      200 Watt RMS , continuous, into 4 Ohm (using +/-50V power supply)

Power supply voltage range: +/- 20 Volt to +/- 65 Volt

Dimensions: 5.25" X 4" X 1 "

Specifications PM224HV:

This amplifier is suited for high voltage amplifier applications, for audio and general purpose amplifier use.

Frequency response:   10Hz - 20KHz +/- 1dB (AC coupled)
                      DC - 20KHz +/- 1dB (DC coupled)
THD at 1KHz:          better than 0.01%;
Voltage gain:         32 dB (40x), non inverting or inverting;
Input impedance:      25 KOhm, AC or DC coupled.
Max. output current:  0.7A
Max power output:     50 Watt RMS

Power supply voltage range: +/- 20 Volt to +/- 200 Volt

Dimensions: 5.25" X 4" X 1 "

Ordering Information:
PM224-A Power amplifeir module
PM224HV-A High voltage Power amplifeir module
PM224-HS Custom Heatsink
